Interacoustics
PA5 Pediatric Screening Audiometer

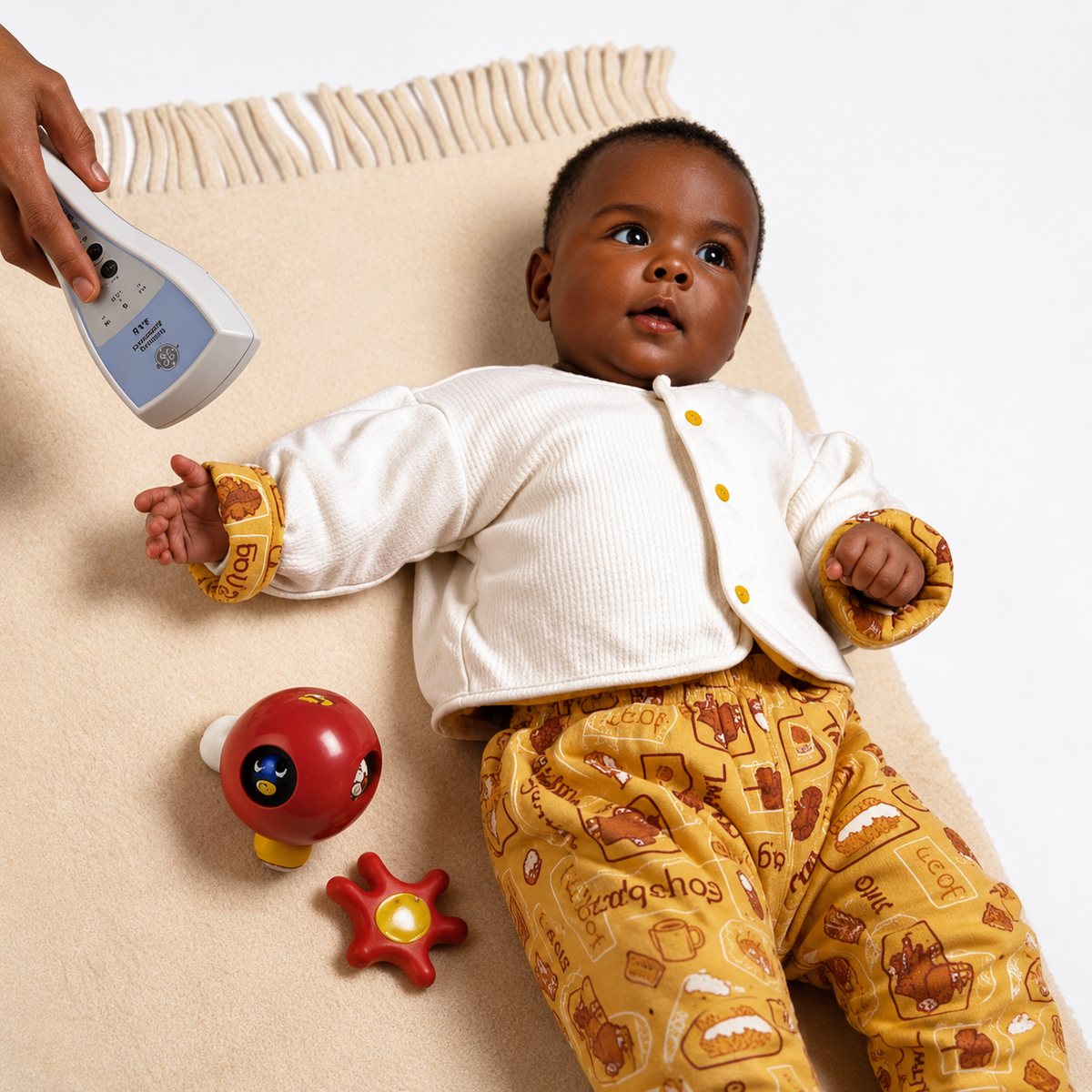

The PA5 is a handheld free-field pediatric screening audiometer that presents sound and light stimuli. It is intended for use in a quiet environment, held approximately 50 cm from the child at a 90 degree angle to the ears.
Need pricing or specifications?
Add this product to your request for quote list or contact our team. We'll respond with full details.
Key Features
- Free-field screening audiometry with one-handed operation
- Presents light and sound stimuli together with one finger
- Three LEDs arranged in a triangle for orientation-reflex conditioning
- Silent presentation switches
- Auto-calibrate mode switches to pure tone and TDH39 calibration
- Automatic switch-off with reactivation on touch, and automatic battery indication
- No warm-up time required
Technical Specifications
Sound StimuliWarble tone, narrow band noise, white noise
Light StimulusFlashing light (3 LEDs in a triangle)
Intensity Range20 to 80 dB HL in 10 dB steps (at 50 cm)
ControlsOne-handed operation with frequency and intensity control
HeadphoneSingle TDH39S connector (optional)
PowerThree standard AA batteries
Dimensions25 x 7 x 5 cm (9.8 x 2.7 x 2 in)
Weight0.36 kg / 0.8 lb including batteries
Audiometer StandardIEC 60645-1, Type 5
Loudspeaker SPL StandardISO 389-7
Headphone SPL StandardISO 389-1
EMC StandardIEC 60601-1-2
Medical CEMDD 93/42/EEC, Annex II
