United Imaging

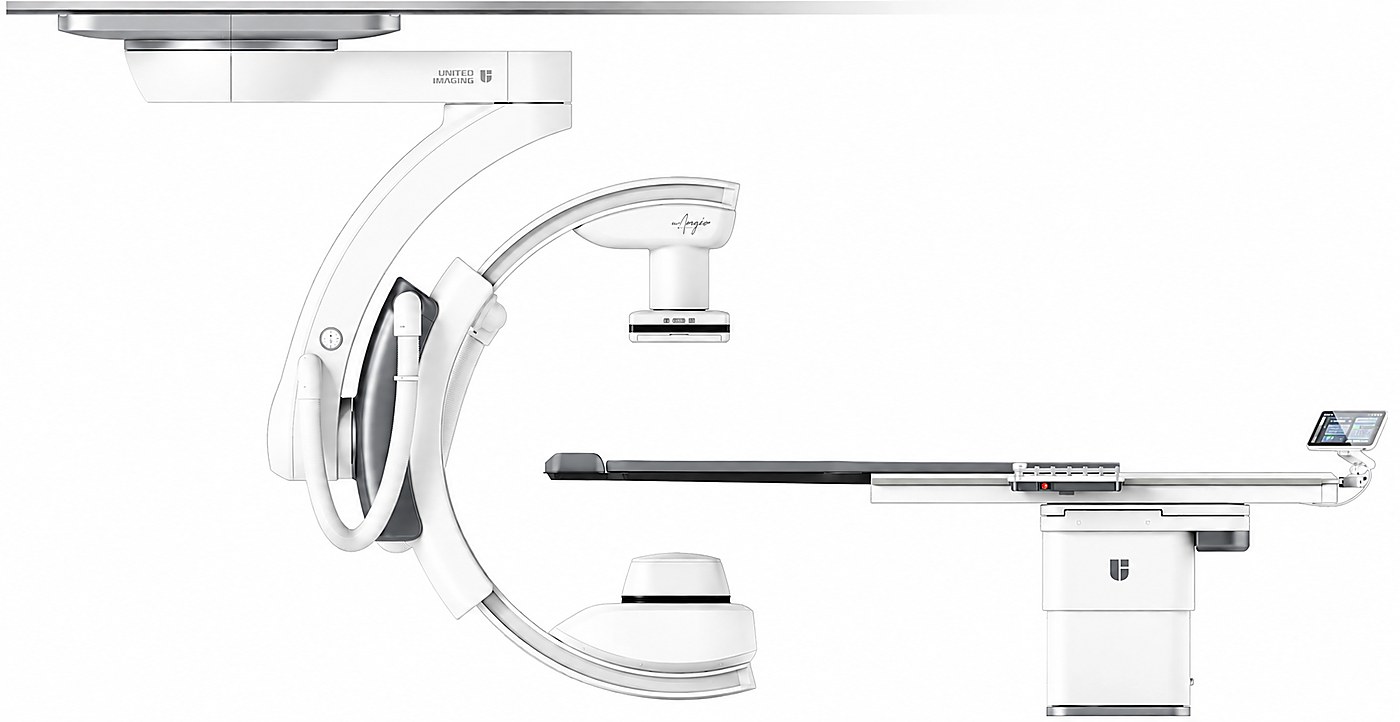

uAngio AVIVA Angiography System
An intelligent angiography system built on the uVERA platform.
The uAngio AVIVA brings voice-control, intelligent vision, 8-axis ceiling-mounted robotics, and a low-dose imaging chain together on the uVERA platform. The angiography suite becomes an intelligent assistant that simplifies workflow, frees the operator’s hands, and delivers clear images at the lowest possible dose. Its unique lateral 8th axis lets clinicians reach the patient from the head, left, or right without moving the table, supporting complex procedures such as EVAR and TAVI.
Need pricing or specifications?
Add this product to your request for quote list or contact our team. We'll respond with full details.
Key Features
- Voice control built for the angio suite. Say "Hi VERA" to operate hands-free, with over 10,000 commands recognised at more than 97% accuracy and responses in about a second
- Intelligent vision system using 2D/3D cameras that reconstructs the operating room in real time for safe, aware movement
- Auto-positioning that speeds up setup by around 75% with no extra radiation exposure to the patient

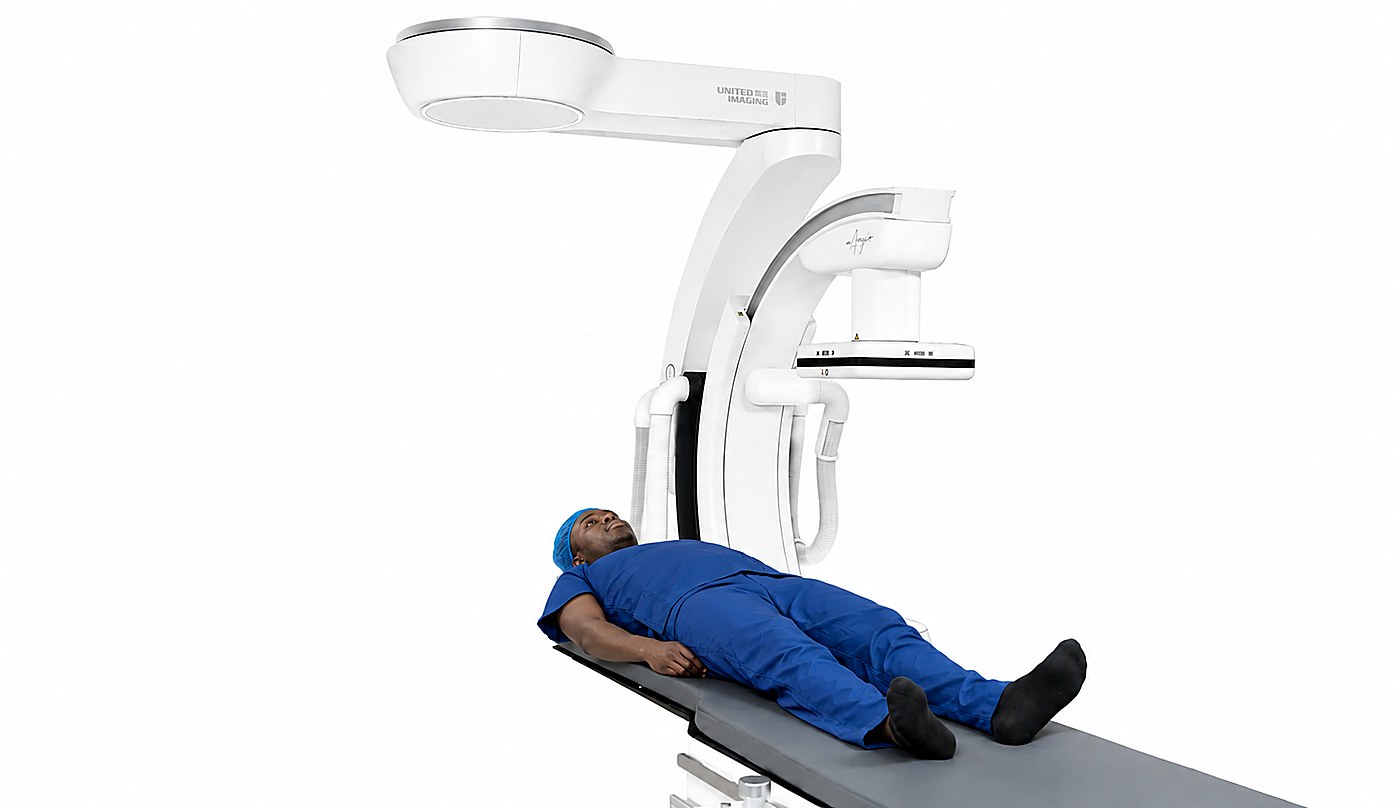

- 8-axis ceiling-mounted robotics with a unique lateral 8th axis, so you can reach the patient from the head, left, or right without moving the table
- Wide travel range (about 6.35 m head-to-toe and 2.36 m side-to-side) to cover the whole lab from a single system
- 270° rotation that clears space at the tableside, giving the clinical team more room to work
- Low-dose imaging chain with smart denoising that cuts radiation dose by up to 30% while improving image clarity
- Reduces contrast (dye) use by up to 50% with AI coronary enhancement
- Advanced exposure control across multiple parameters, plus real-time tube-to-detector distance adjustment, to balance image quality and dose automatically
- Built-in artifact and motion reduction for cleaner images around metal and moving anatomy
- Ready-made clinical packages for cardiology, neurology, oncology, and peripheral work, including coronary roadmapping, live stent visualisation, vessel and aneurysm fusion, and tumour embolization guidance
- Real-time DSA with automatic registration and 2D vessel and blood-flow analysis for confident diagnosis
- One intelligent platform (uVERA) that ties voice, vision, robotics, and imaging together to simplify workflow

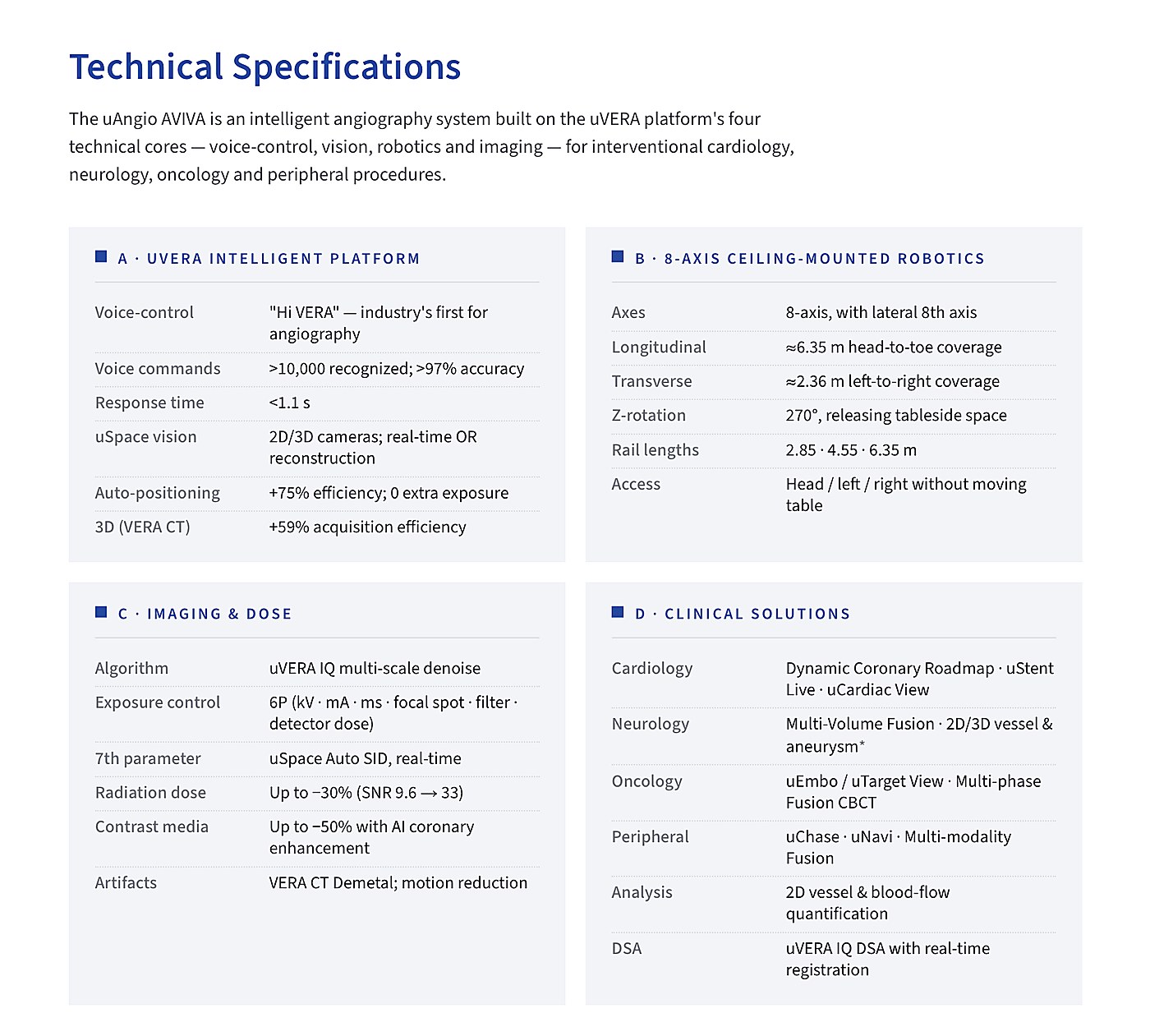

Technical Specifications
ParameteruAngio AVIVA
PlatformuVERA intelligent platform
Voice control"Hi VERA", 10,000+ commands, 97%+ accuracy, < 1.1 s response
Axes8-axis ceiling-mounted, with lateral 8th axis
Longitudinal travelApproximately 6.35 m head-to-toe
Transverse travelApproximately 2.36 m left-to-right
Z-rotation270°
Rail lengths2.85 / 4.55 / 6.35 m
Auto-positioningUp to 75% faster setup, zero extra patient exposure
Radiation doseUp to 30% reduction, SNR maintained
Contrast mediaUp to 50% reduction with AI coronary enhancement
Imaging algorithmuAngio IQ multi-scale denoising
Artifact reductionVERA CT Demetal and motion reduction
DSAReal-time uVERA IQ DSA with automatic registration
Clinical packagesCardiology, neurology, oncology, peripheral interventions
