Home Categories Oncology & Cancer Care Oncology & Radiotherapy Department CT Simulator
Shinva

CT Simulator

One big-bore platform. Three levels of performance, scaled to every radiotherapy need.

The XHCT series makes wide-bore CT simulation easy and accurate for radiotherapy planning. All three models share the same spacious 85 cm bore, flat treatment-style couch and fine-detail imaging for confident, repeatable positioning. Choose the XHCT-16 for dependable everyday planning, the XHCT-64 for sharper images on demanding cases, or the XHCT-64 PRO for top-tier speed, power and advanced clinical capability.

Need pricing or specifications?

Add this product to your request for quote list or contact our team. We'll respond with full details.

Key Features

  • Wide 85 cm big-bore gantry that makes patient positioning easy and comfortable, even for larger or immobilised patients
  • Dedicated flat couch top that matches the radiotherapy treatment table for accurate, reproducible planning

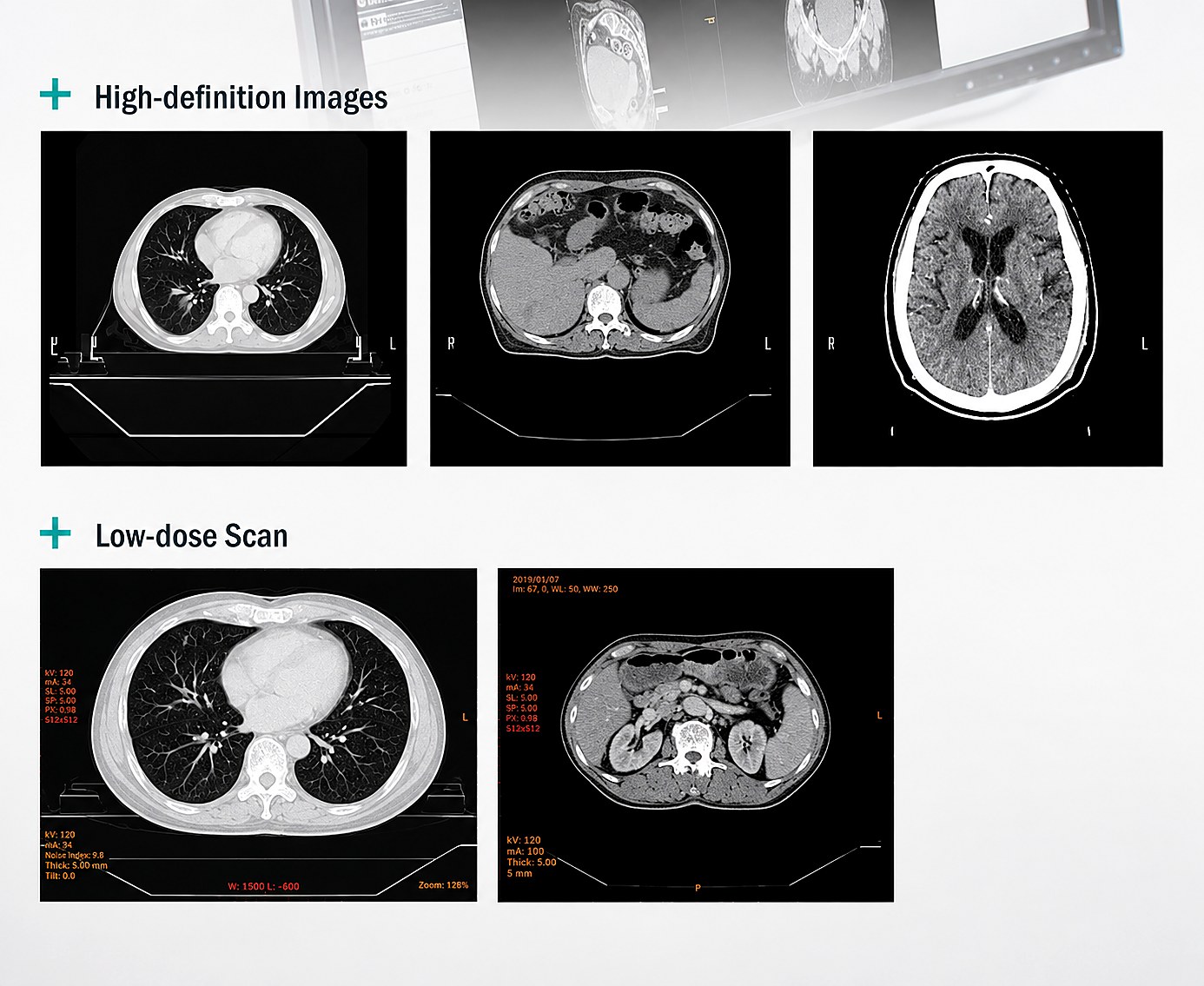

  • Fine 0.625 mm minimum slice thickness on every model for detailed, high-quality planning images
  • Available in three configurations, so you can match the system to your budget and clinical workload
  • Up to 128-slice / 64-array imaging with sharp 22 lp/cm resolution on the XHCT-64 and PRO for excellent detail on demanding cases
  • Fast scanning that shortens exam times, down to a 0.33-second rotation on the PRO for smoother imaging of moving anatomy
  • Higher-output 8 MHU tube, 80 kW generator and wider 60 cm field of view on the PRO for heavier workloads and larger scan areas
  • Dual-energy scanning for richer tissue information on the XHCT-64 and PRO
  • Built-in dose-saving tools, including automatic mA control and low-dose imaging, to keep patient exposure as low as possible
  • Metal and bone-density artefact reduction for cleaner images around implants and dense bone
  • 4DCT scanning and automatic organ-at-risk contouring to support precise, motion-aware radiotherapy planning
  • Coronary artery scanning on the PRO for cardiac-capable imaging
  • Designed specifically for CT simulation in radiotherapy, delivering accurate localization data for treatment with linear accelerators

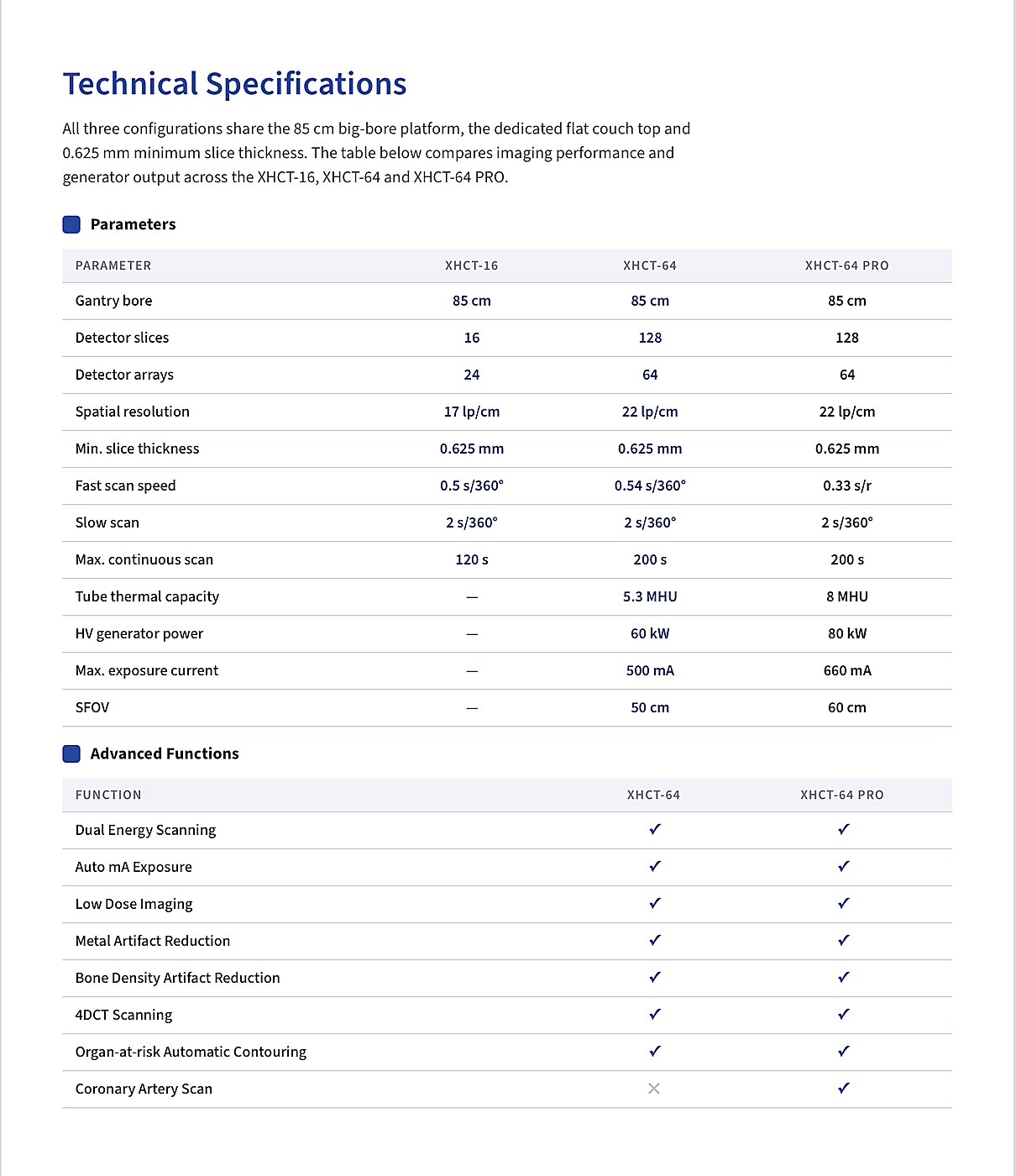

Technical Specifications

ParameterXHCT-16XHCT-64XHCT-64 PRO
Gantry bore85 cm85 cm85 cm
Detector slices16128128
Detector arrays246464
Spatial resolution17 lp/cm22 lp/cm22 lp/cm
Min. slice thickness0.625 mm0.625 mm0.625 mm
Fast scan speed0.5 s/360°0.54 s/360°0.33 s/r
Slow scan2 s/360°2 s/360°2 s/360°
Max. continuous scan120 s200 s200 s
Tube thermal capacity—5.3 MHU8 MHU
HV generator power—60 kW80 kW
Max. exposure current—500 mA660 mA
SFOV—50 cm60 cm
Dual-energy scanning—✓✓
Auto mA exposure—✓✓
Low-dose imaging—✓✓
Metal artifact reduction—✓✓
Bone-density artifact reduction—✓✓
4DCT scanning—✓✓
Organ-at-risk auto contouring—✓✓
Coronary artery scan—×✓
