Lifecare® USA
Fetal Obstetric Suction Equipment

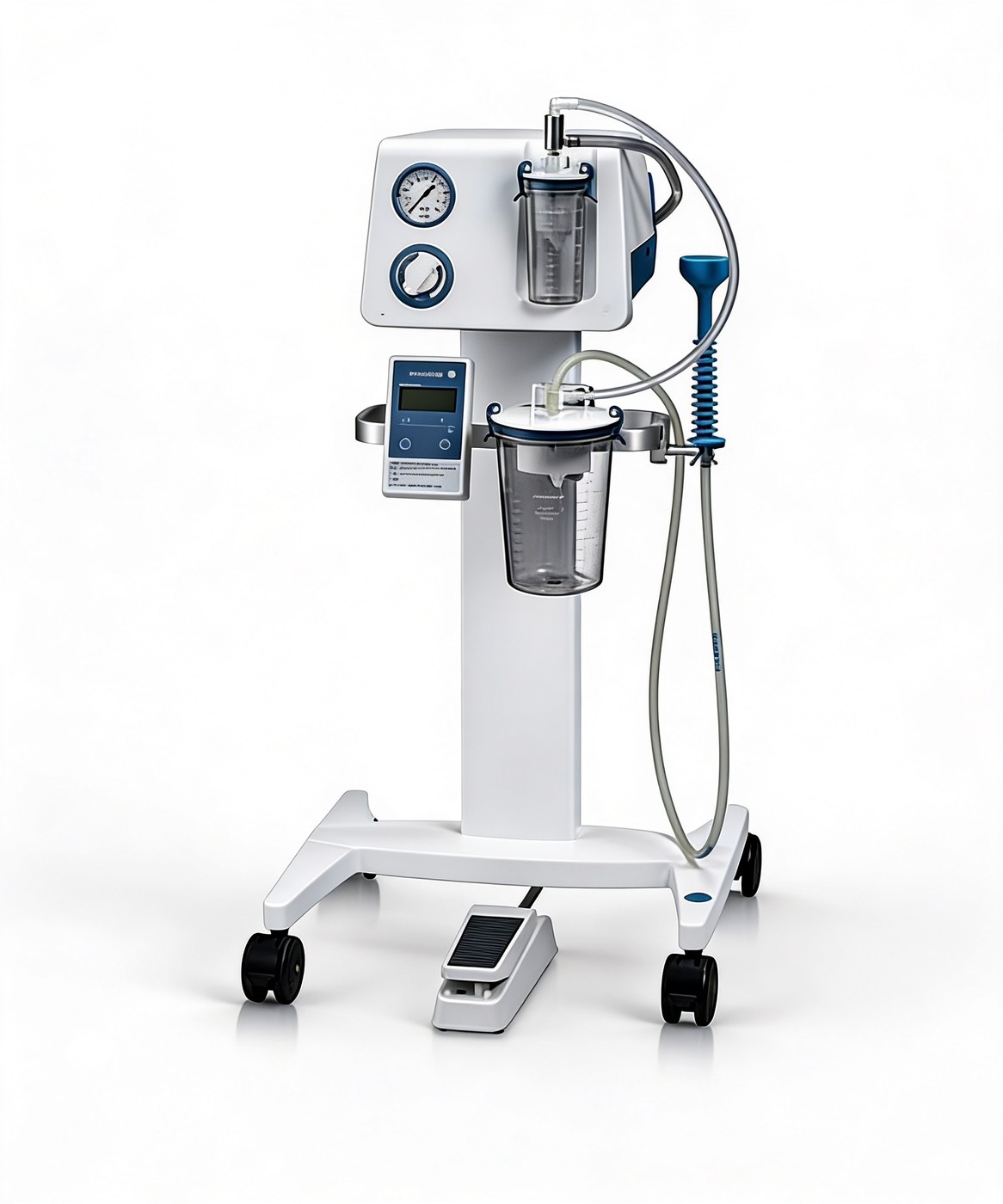

The Lifecare® USA Obstetric Vacuum Extractor. (LC-BC01A) is a vacuum-assisted delivery system designed to support safe and controlled fetal extraction during childbirth. Built for use in labor wards and emergency obstetric settings, the system delivers stable suction performance through four-phase vacuum regulation and automatic ON/OFF control.
Need pricing or specifications?
Add this product to your request for quote list or contact our team. We'll respond with full details.
Key Features
- Four-phase vacuum regulation for controlled suction adjustment
- Automatic ON/OFF function for consistent vacuum delivery
- Vacuum-assisted fetal extraction support during childbirth

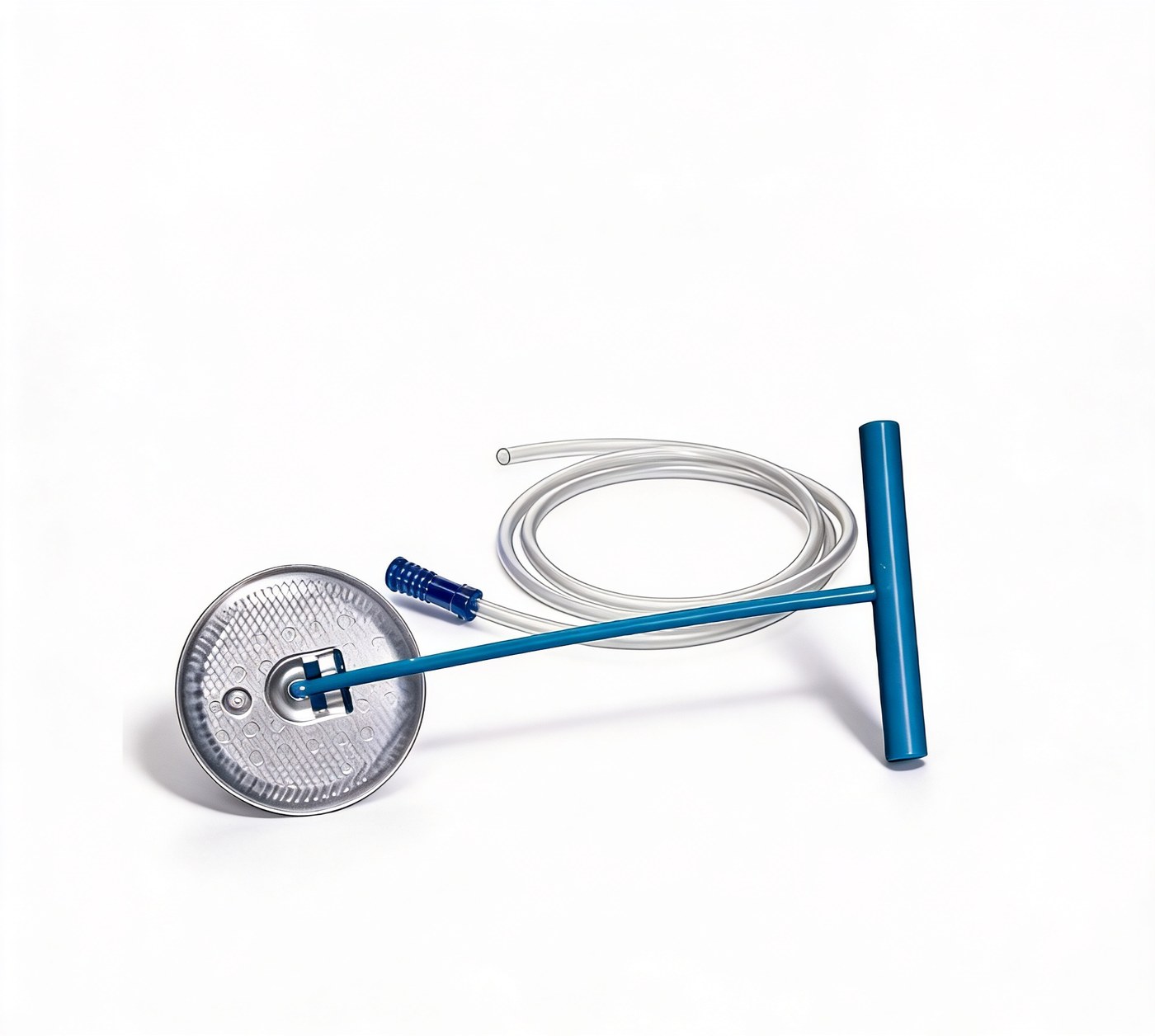

- Compatible with 60 mm and 70 mm silicone suction cups
- Release-valve suction cups for controlled disengagement
- Dual 2000 ml liner jars for continuous suction operation
- Antibacterial and viral filtration for infection control
- Hydrophobic — LIQUID STOP
- filter for fluid overflow protection
- Polycarbonate lid with integrated overflow safety valve
Technical Specifications
ParameterFetal Obstetric Suction Equipment
ApplicationVacuum-assisted delivery support
Overall Dimensions (H × W × L)1010 × 400 × 320 mm
Overall Dimensions (inches)40.4 × 15.7 × 12.8 in
Power Supply230 VAC, 50 Hz
Power Consumption180 VA
Vacuum Pump TypeLW280-5L
Maximum Flow Rate (before filter)> 95 L/min
Flow Rate Equivalent5.7 m³/h (±5%)
Maximum Vacuum Level— 697.55 mmHg
Vacuum Pressure— 93 kPa / 0.93 bar (±5%)
Standard Collection Jar Capacity2000 ml
Number of Collection Jars2
Weight (without jar)Approx. 20 kg / 44.1 lbs
Filtration SystemAntibacterial, viral & hydrophobic filters(
MobilityFloor-standing unit with castors
